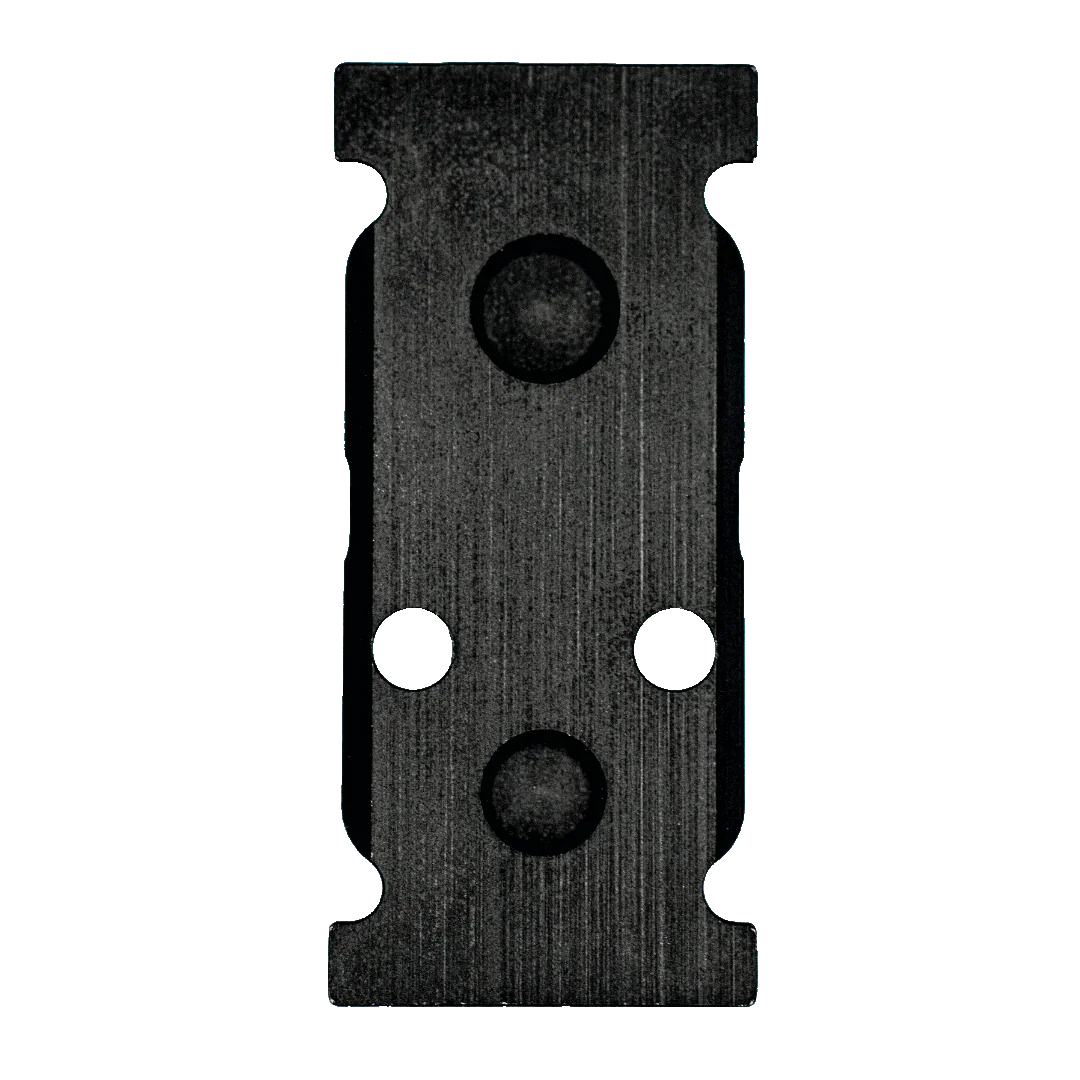

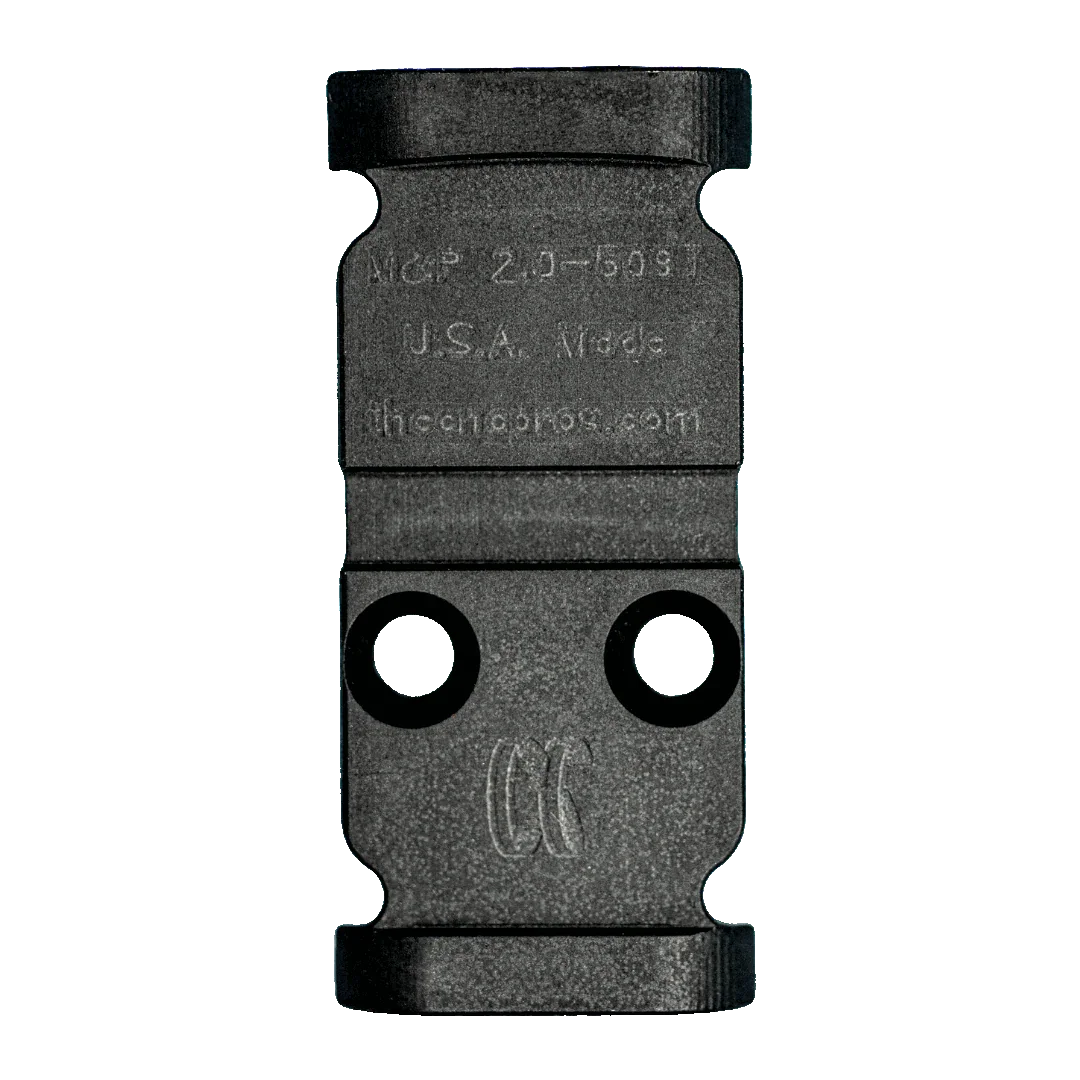

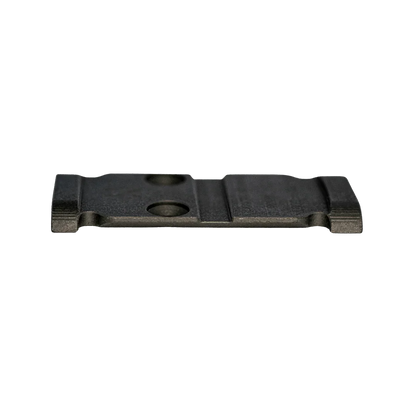

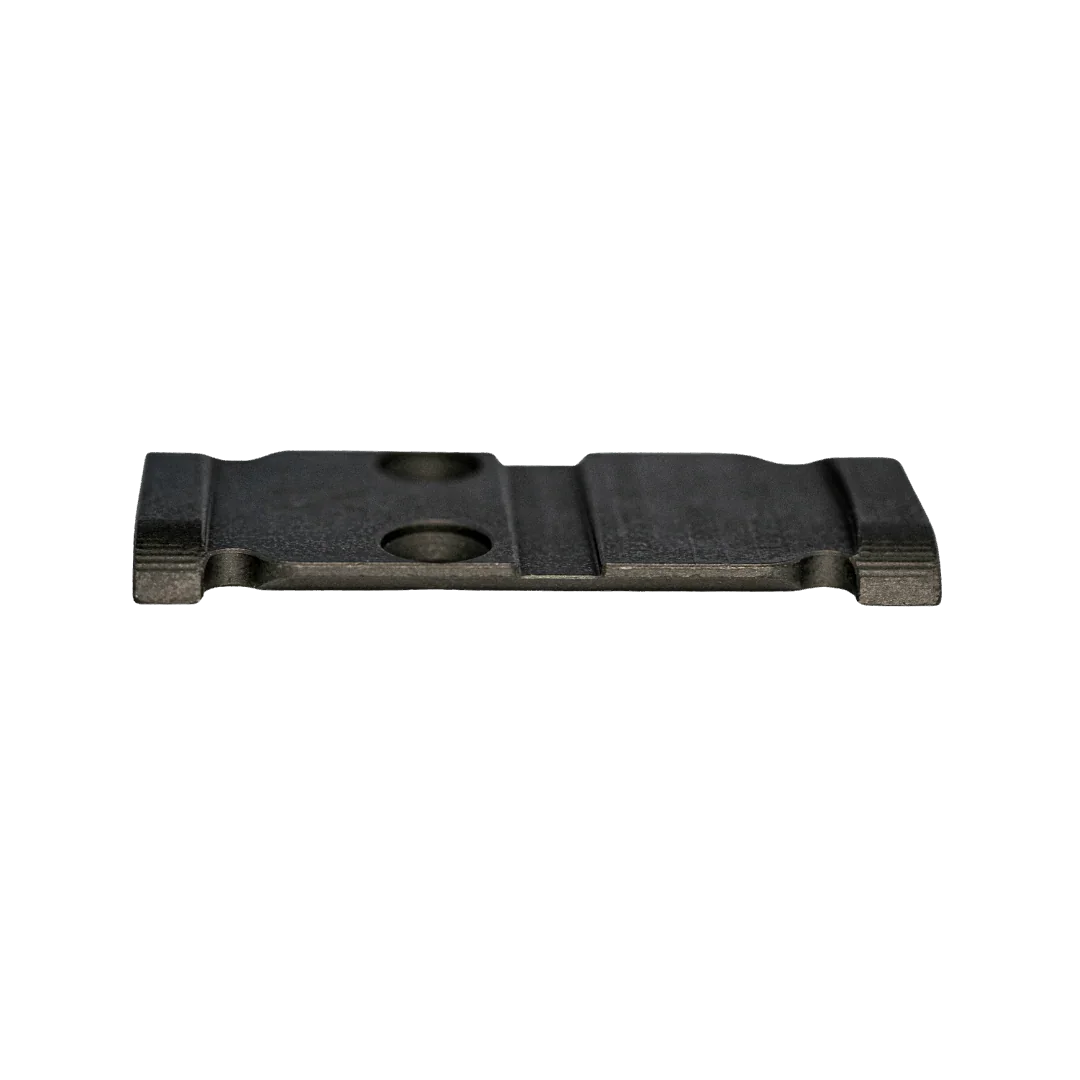

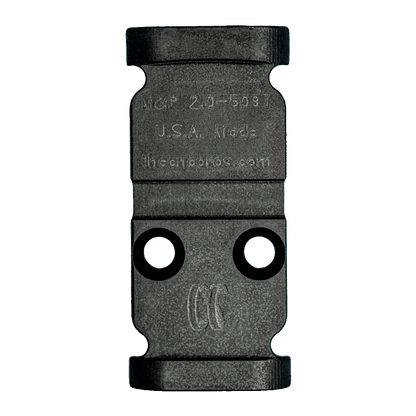

This precision-machined adapter plate allows for the mounting of the Holosun 509T, to the Smith and Wesson M&P 2.0. We take immense pride in the aesthetics and quality of the parts we produce. Every product is engineered, manufactured, finished, and shipped from our shop in Salt Lake City, Utah. Each part is inspected with calibrated precision measuring tools and checked against a model print to maintain the tightest tolerances.

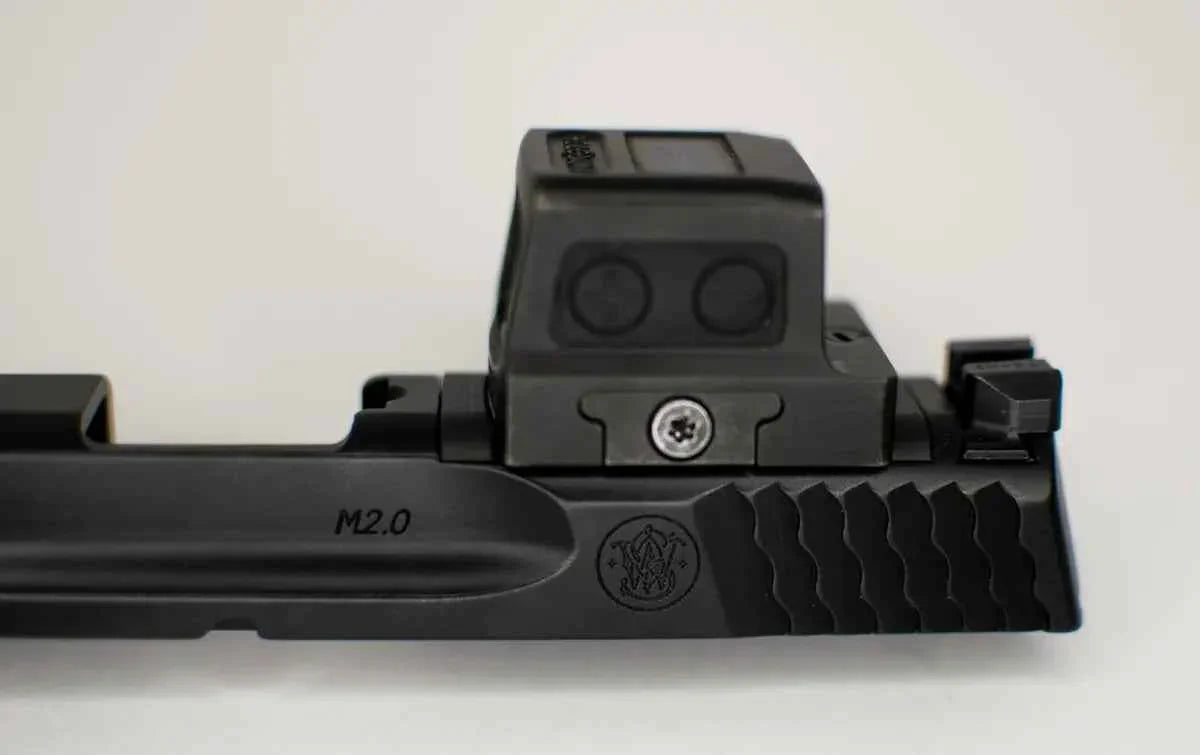

Fits: Smith and Wesson M&P 2.0 to Holosun 509T. All mounting hardware needed comes with the order.
**May fit other models, listed is what we've tested.**
All mounting hardware needed comes with the order.
Specifications:
Material: Precision machined, heat-treated 4140 alloy steel.
Finish: Coated with a copper phosphate to aid in corrosion resistance.
Hardware: Custom made 6-32 x 5/16 Screws.
Install instructions for the M&P 2.0 adapter plate:
1- Make sure the surfaces and threads are clean and free from debris. Apply a light coat of oil or grease to the adapter plate to prevent rusting.
2- Loctite 222 (purple) is recommended. Absolutely under no circumstances should any red, green, or blue thread lockers be used.
3- Put a drop of 222 on the internal threads and on the thread's screws.
4- Use the supplied 4-40 and 4-48 screws.
5- Very Important Note: Use a reliable torque driver set 10-13 IN. LBS.
6- Allow to cure for 24 hours.
