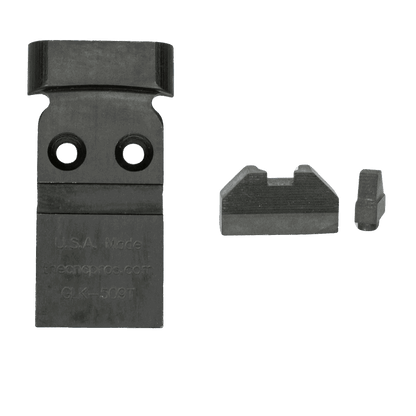

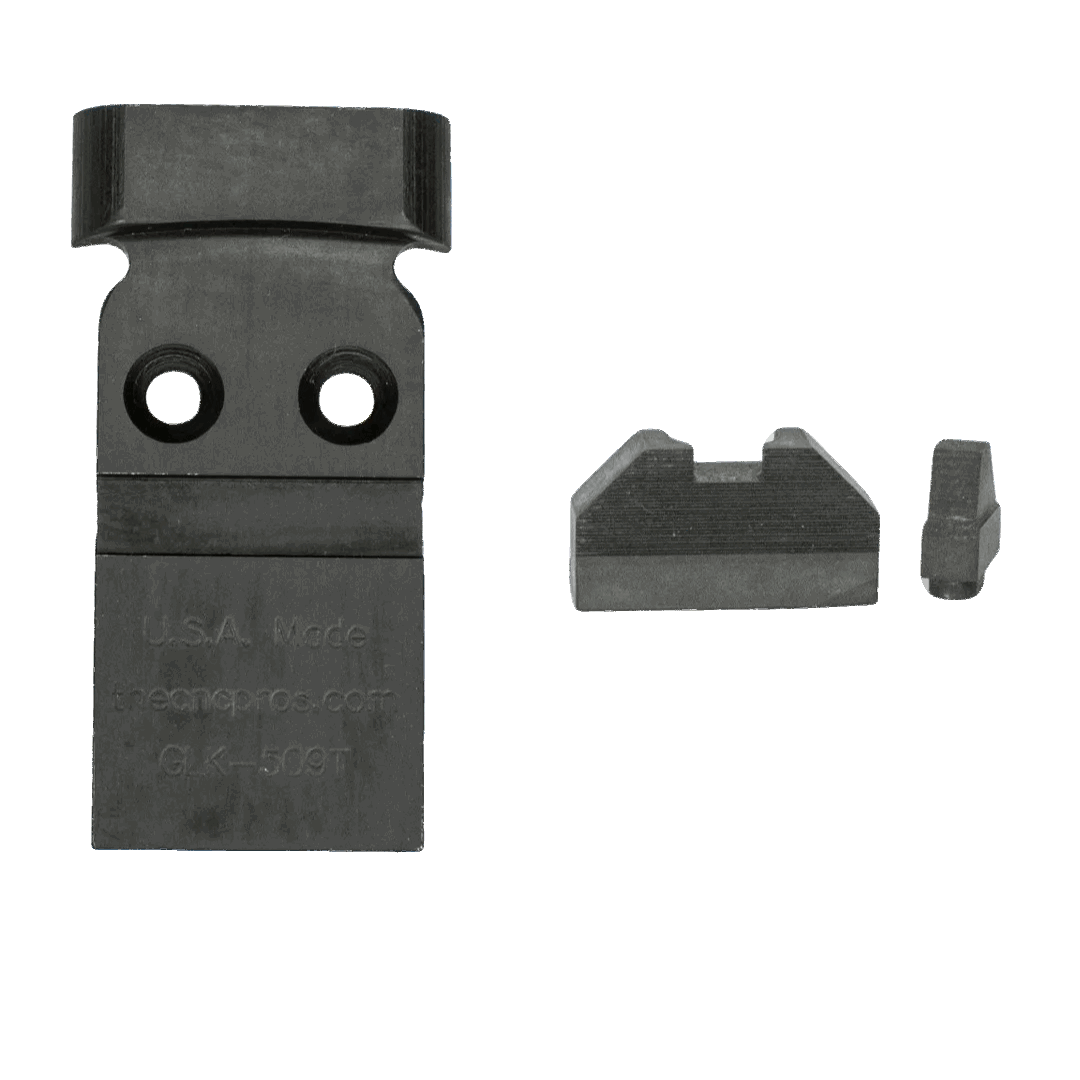

Here you have the option to purchase the sight mount and the iron sights we make together! We take immense pride in the aesthetics and quality of the parts we produce. Every product is engineered, manufactured, finished, and shipped from our shop in Salt Lake City, Utah. Each part is inspected with calibrated precision measuring tools and checked against a model print to maintain the tightest tolerances.

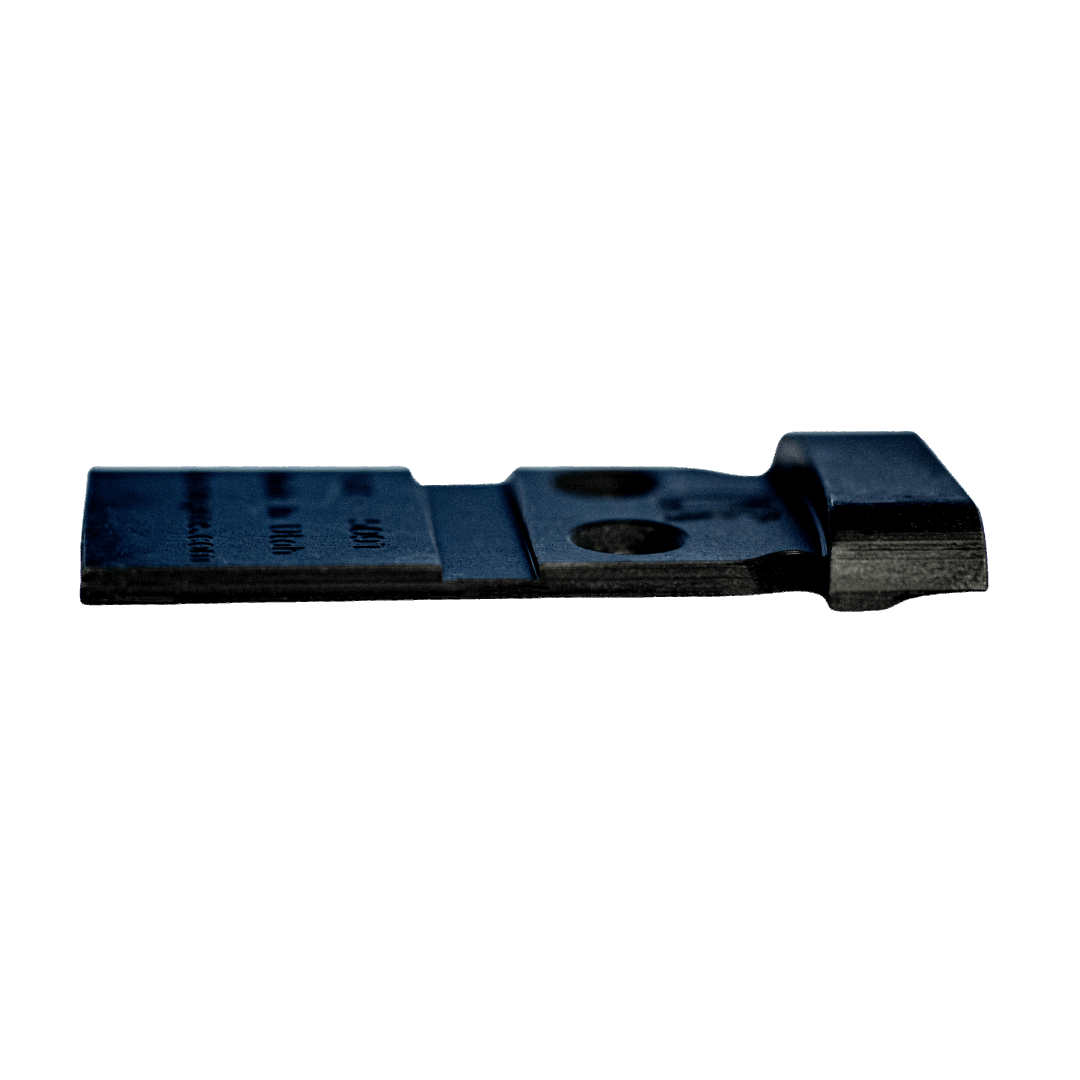

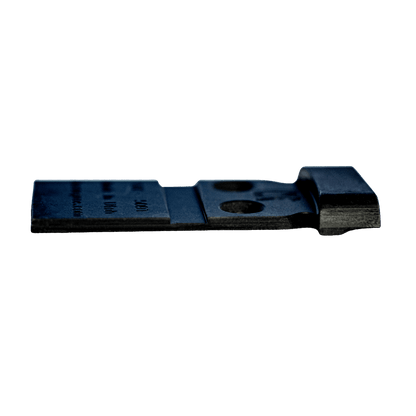

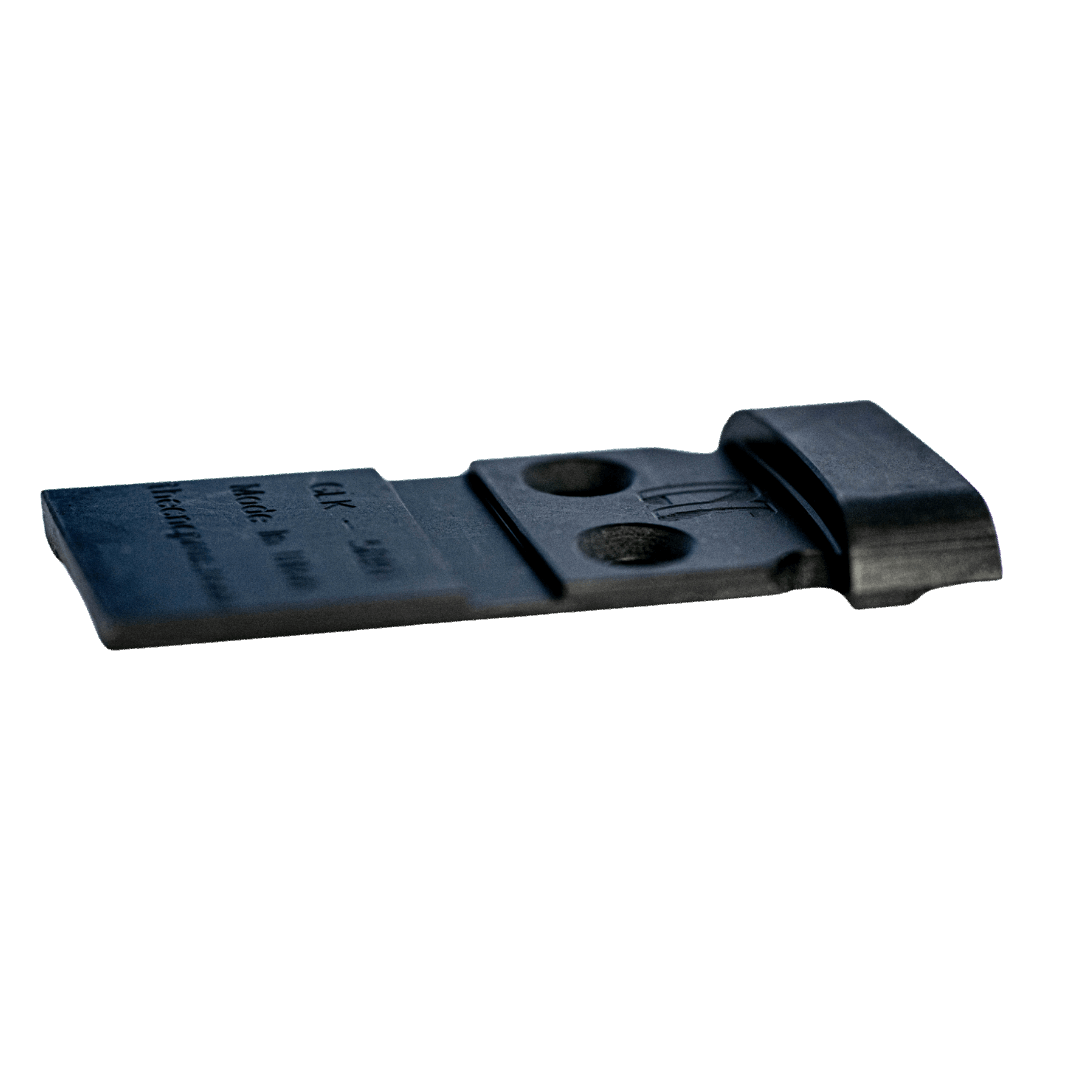

Adapter Plate:
This precision-machined adapter plate allows for the mounting of the Holosun 509T variants to the Glock models 17, 19, 20, 21, 22, 23, 34, 33, 40, 41, 45, and 47. MOS.
Fits: Glock Models 17, 19, 20, 21, 22, 23, 34, 33, 40, 41, 45, and 47 MOS.
**May fit other models, listed is what we've tested.**
All mounting hardware needed comes with the order.
-
Specifications:
Material: Precision machined, heat-treated 4140 alloy steel.
Finish: Coated with a copper phosphate to aid in corrosion resistance.
Hardware: (included) M3 x 0.5 x 6mm Screws
Install instructions for the MOS adapter plate:
1- Make sure the surfaces and threads are clean and free from debris. Apply a light coat of oil or grease to the adapter plate to prevent rusting.
2- Loctite 222 (purple) is recommended. Absolutely under no circumstances should any red, green or blue thread lockers be used.
3- Put a drop of 222 on the internal threads
and on the thread's screws.
4- Use the supplied 3mm screws
5- Very Important Note: Use a reliable torque driver set 10-13 IN. LBS
6- Allow to cure for 24 hours.

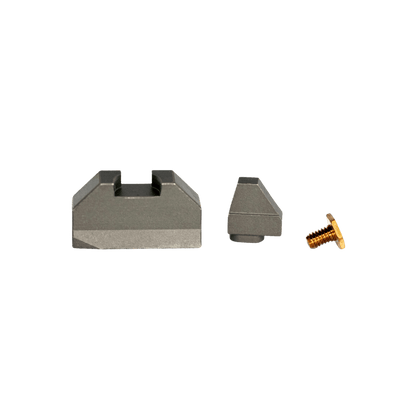

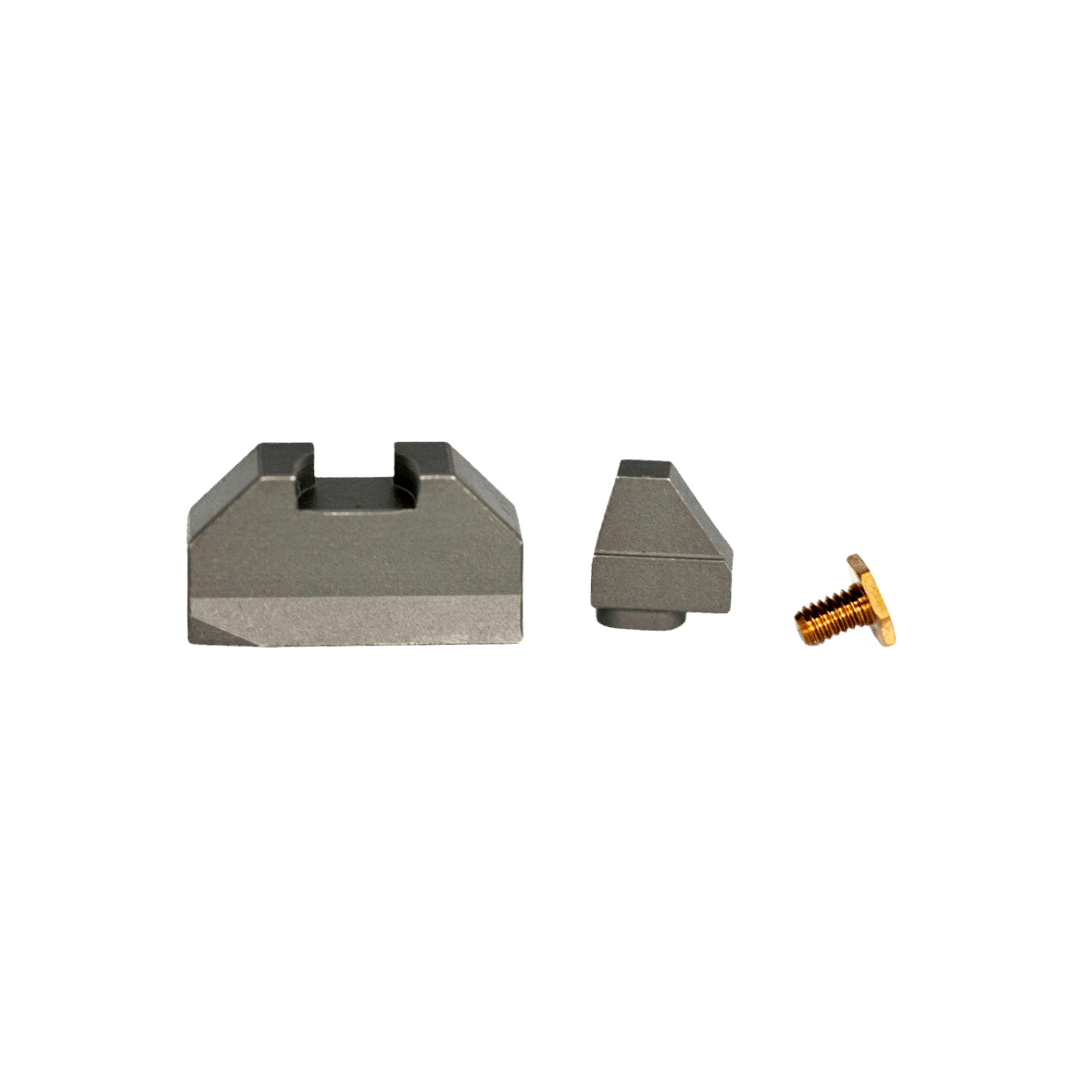

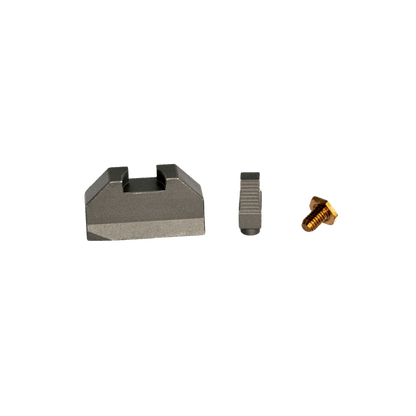

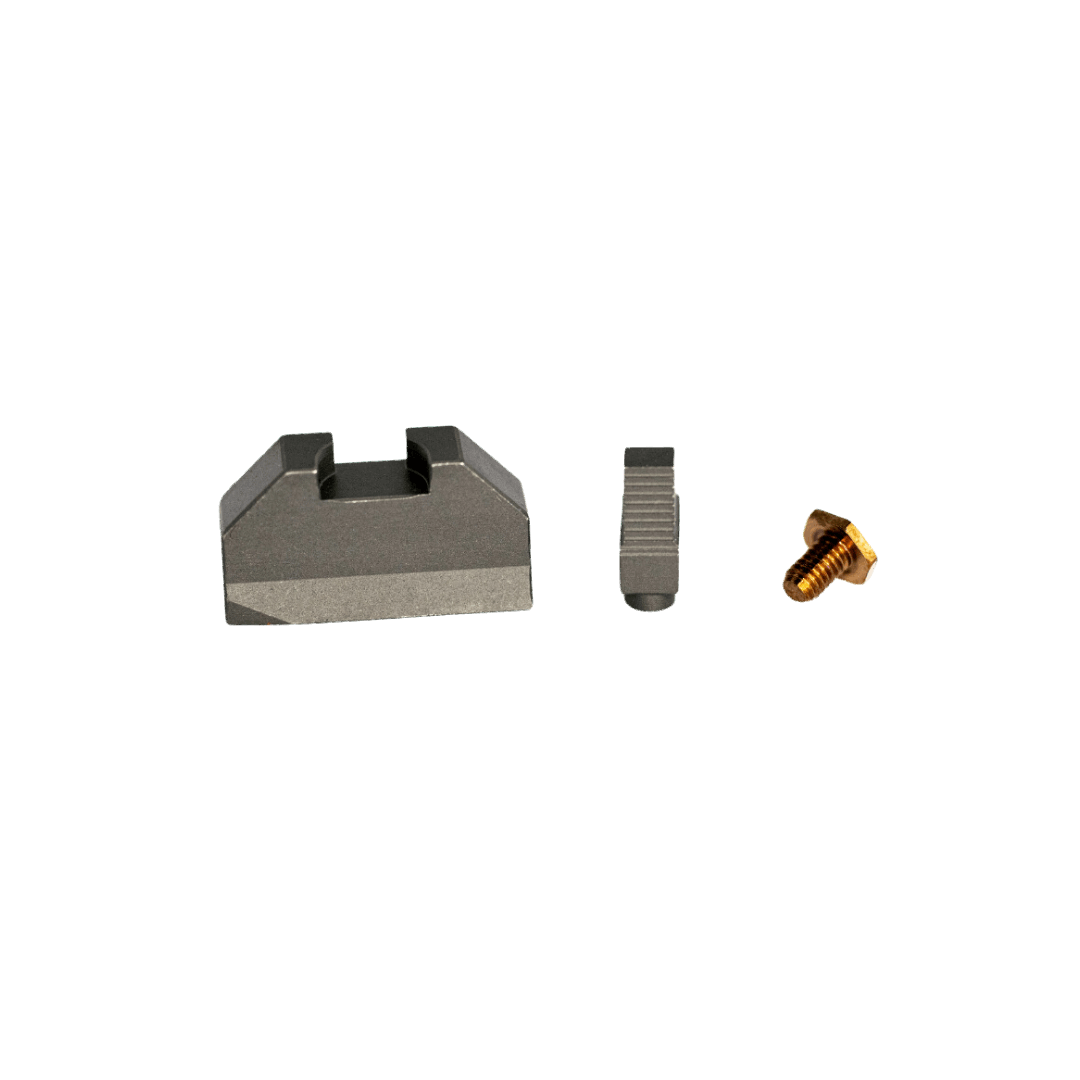

Iron Sight:
Iron sights designed for co-witness or backup sights, works with our full-size Glock – Holosun 509T adapter plate. Both front and rear sights are serrated. On the rear sight, we added a small taper to assist with installation and a small bore for Loctite.
Specifications:
Material: Precision machined steel.
Finish: Coated with a copper phosphate to aid in corrosion resistance.
Hardware: (included) Made from heat-treated 17-4 stainless steel in the USA. This will work on all OEM Glock front sights.
