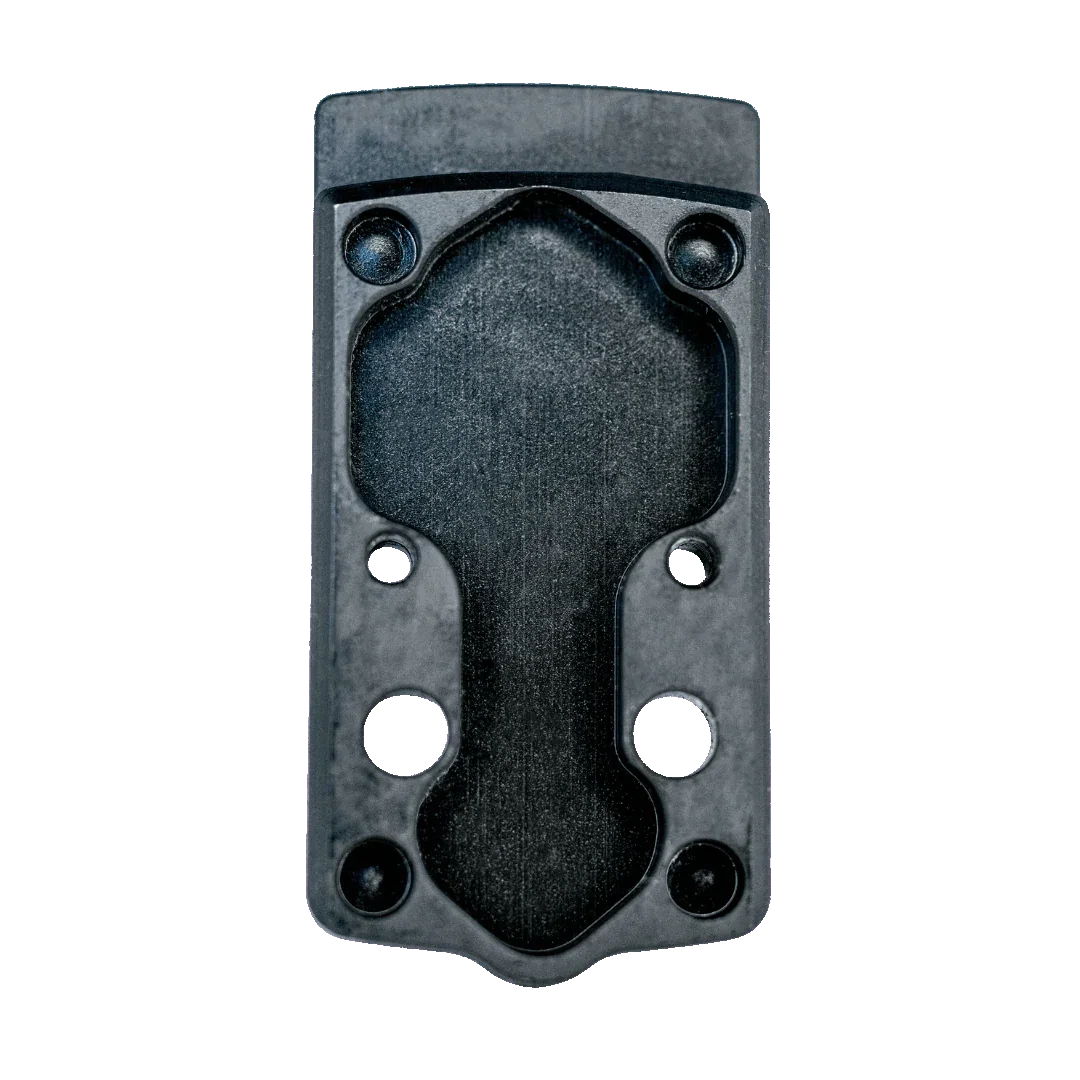

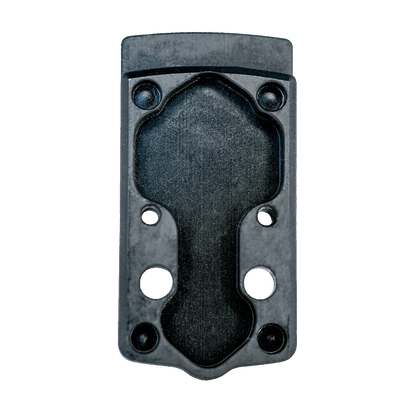

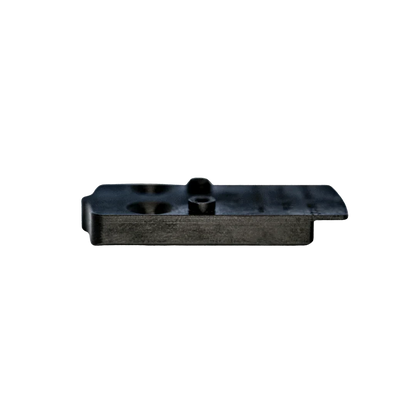

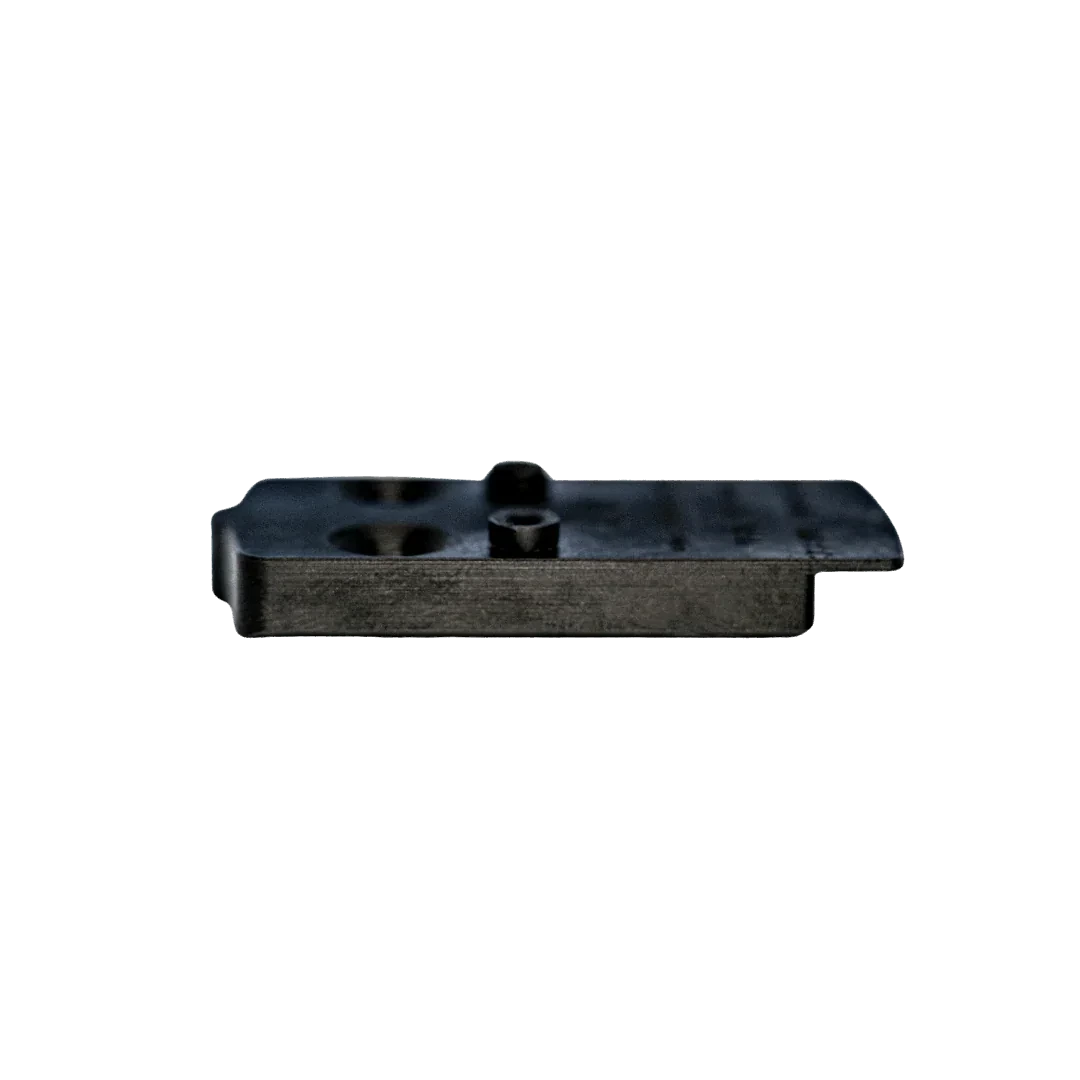

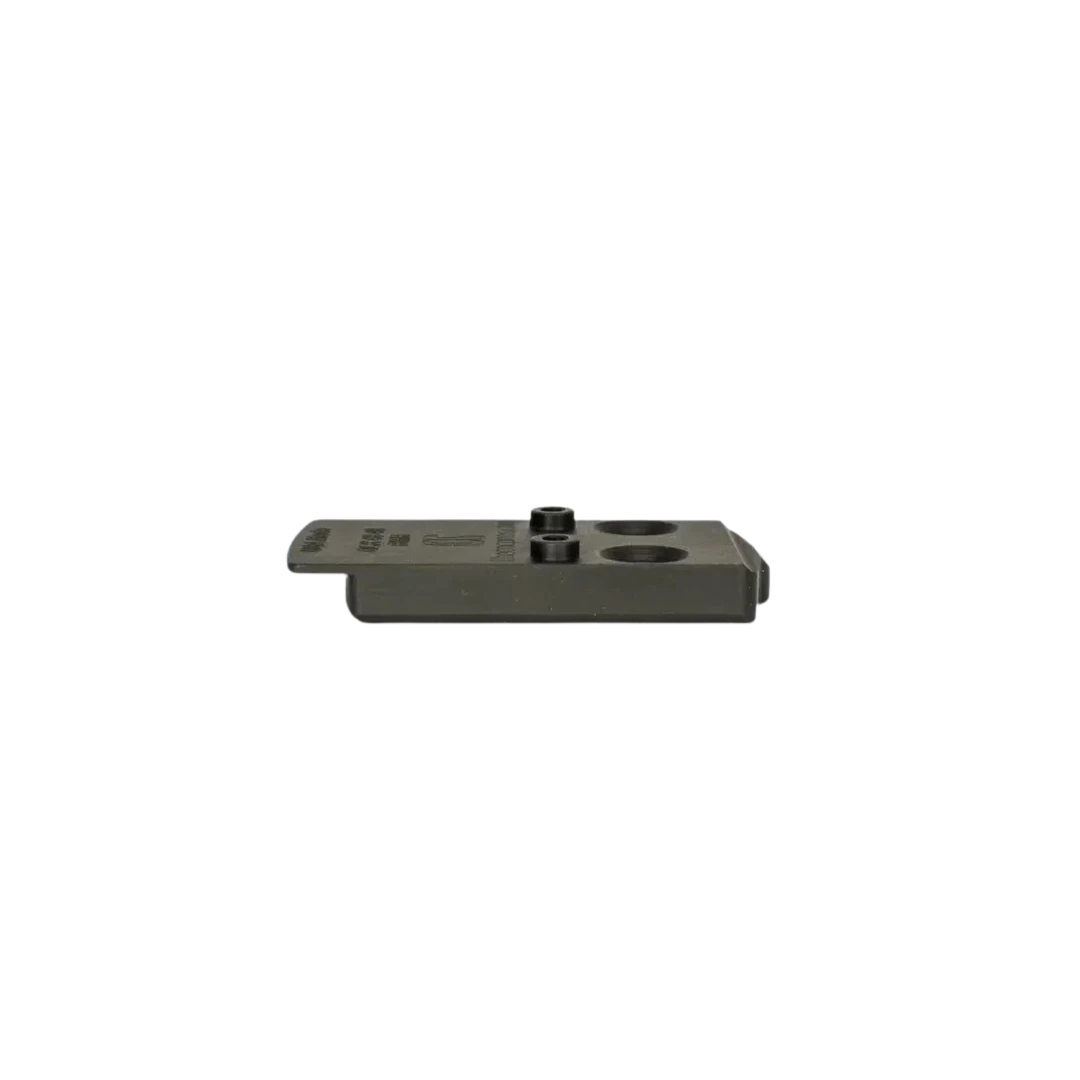

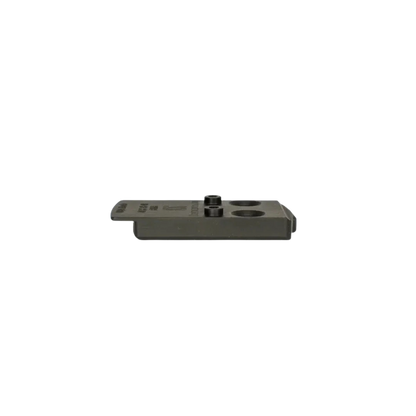

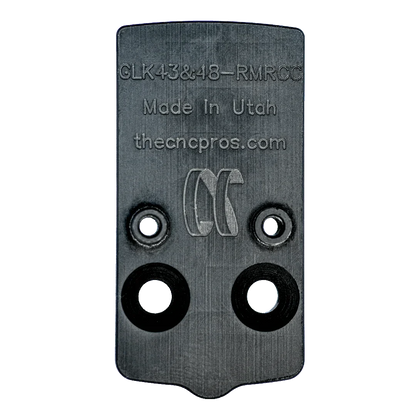

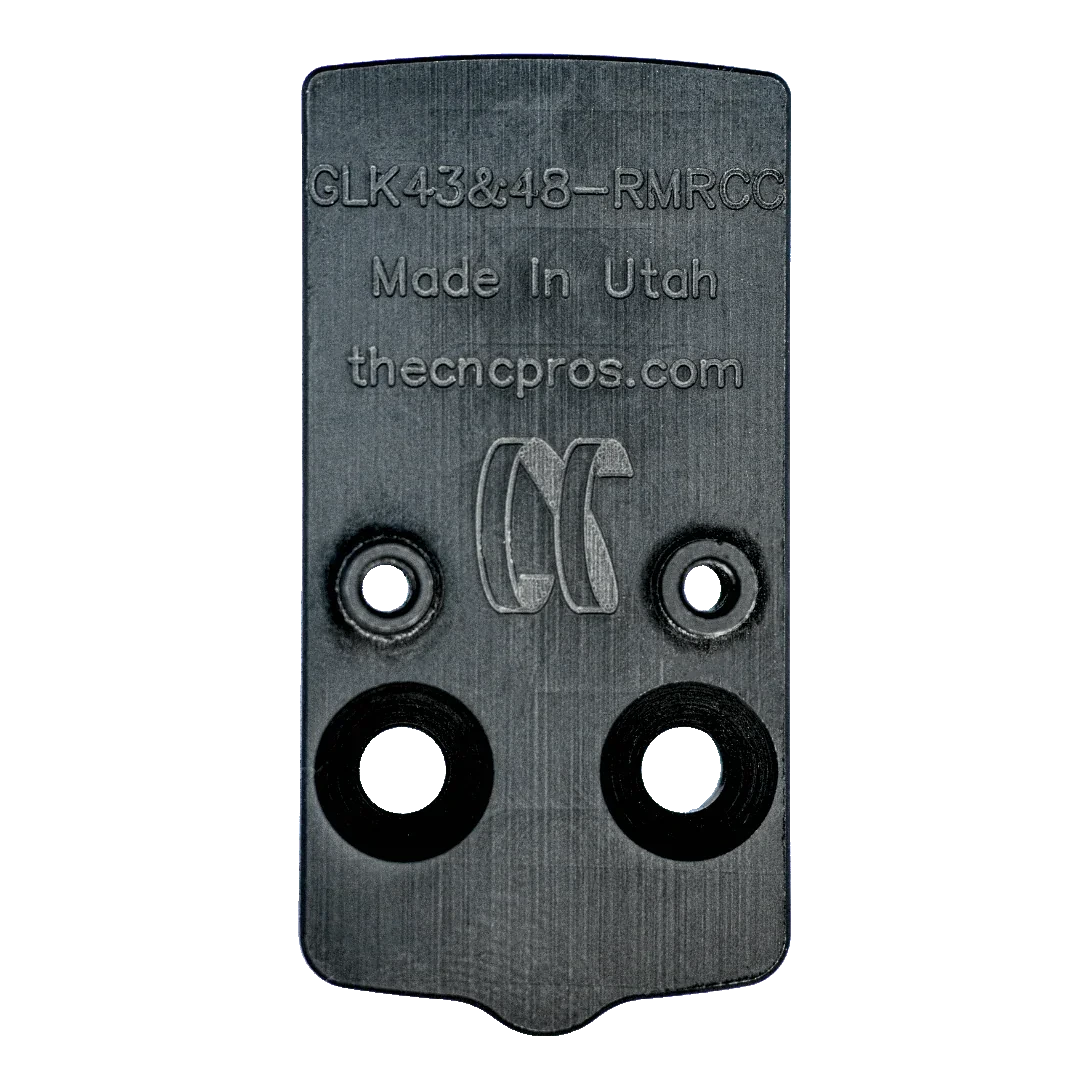

This precision-machined adapter plate allows for the mounting of the Trijicon CC to the Glock models 48/43X MOS. We take immense pride in the aesthetics and quality of the parts we produce. Every product is engineered, manufactured, finished, and shipped from our shop in Salt Lake City, Utah. Each part is inspected with calibrated precision measuring tools and checked against a model print to maintain the tightest tolerances.
Fits: Glock 48/43 MOS
**May fit other models, listed is what we've tested.**
All mounting hardware needed comes with the order.
-
Specifications:
Material: Precision machined, heat-treated 4140 alloy steel.
Finish: Coated with a copper phosphate to aid in corrosion resistance.
Hardware: (included) M4 x 0.7 x 8mm Screws. The mounting plate is attached to the slide with the M4 x 0.7 screws. The sight uses 4-40 screws.
Install instructions for the 43/48 Glock adapter plate:
1- Make sure the surfaces and threads are clean and free from debris. Apply a light coat of oil or grease to the adapter plate to prevent rusting.
2- Loctite 222 (purple) is recommended. Absolutely under no circumstances should any red, green, or blue thread lockers be used.
3- Put a drop of 222 on the internal threads and on the thread's screws. Note: Use the screws that come with your
site. We do not supply these screws.
4- Very Important Note: Use a reliable torque driver set 10-13 IN. LBS
5- Allow to cure for 24 hours.
